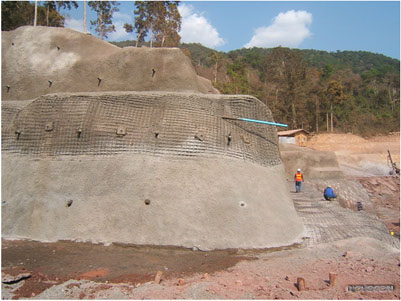

Rock Bolt/ Soil Nail System
because our rolled thread and unique Thread Bar not only keep the same cross section area of the steel bar, but also increase its hardness and strength.
The system guarantees Full Performance.
NOVOCON Rock Bolt
can resist higher load than the conventional cut-thread ones
Type of Rock Bolt
• Deformed Bar Rock Bolt
• Thread Bar Rock Bolt
• Mechanical Rock Bolt
• Split Set Rock Bolt
• GFRP Rock Bolt
Thread System
NOVOCON Rock Bolts are produced under strict quality control in two types of thread profiles:
1. Standard Thread: conforms to ISO, UNC or DIN standards. Rolled thread is known as the stronger thread than conventional cut one.
2. Thread Bar: is manufactured under Thai Industrial Standard (TIS). This special type of thread is the special coarse thread. Its big advantage is that customers can cut and connect it anywhere just by a coupler and a nut.
Various Sizes
NOVOCON Rock Bolts are available in size Ø16 mm, 20 mm, 25 mm, 28 mm, 32 mm, and 40 mm. The full standard lengths are 10 and 12 meters. The longer length can be obtained by using mechanical connector (coupler).
Rock Bolt can be protected from corrosion by various means such as hot-dip galvanized, epoxy coated or as specified.
Corrosion Protection
Range of Product
PRODUCT DESCRIPTION
MATERIAL/SIZE
Reinforced Bar Rock Bolts
• Deformed Bar (DB)
• Thread Bar ("ONE Bar" or "NTB")
Hot-rolled reinforcing bar
• Size Ø16 – 40 mm
• DB grade SD40, SD50
• Thread Bar grade SD40, SD50
Length to orde
Dome Plate
Bevel Dome Plate
(Flat Plate)
Spherical or Dome Washer
Various size of plates
• 150 x 150 x 6 mm.
• 150 x 150 x 8 mm.
• 150 x 150 x 10 mm.
• 150 x 150 x 12 mm.
• 150 x 150 x 15 mm.
• 150 x 150 x 20 mm.
• 200 x 200 x 15 mm.
• 200 x 200 x 20 mm.
• or as specified.
Shape and size
• Typical 47 x 22 mm.
• Parabolic shape
• Center hole is required.
Hex Nut for Thread Bar
• Hexagonal head nut for thread bar
• Availble in TB20 - TB40
Spherical or Dome Nut
• Forged steel for deformed bar
• Cast Iron for thread bar
Hex Nut
• Standard Hexagonal Nut
• Used for deformed bar
Mechanical Shell
(Bail Type)
High pull out resistance up to full capacity of anchor bar.
• size M16 - M32
• size UNC 5/8" - 1-1/4"
Centralizer
• Available for size Ø16 – Ø40 mm
